Beyond Vision. Built to Save Lives.
A camera is only as smart as the system behind it. Pool Angel combines cutting-edge hardware, AI-powered software, and privacy-first design to deliver unmatched poolside protection.
Compatibility & setup
Pool Angel is designed around a fixed camera view, a dedicated indoor hub and a reliable RTSP video stream. This keeps the pool detection area stable after setup and helps reduce issues caused by camera movement or changing angles.
| Feature | Detail |
|---|---|
| RTSP streaming | Supported Supported for compatible fixed-position camera setups. |
| ONVIF camera control | Not currently supported Not currently supported. Pool Angel relies on a stable fixed view once boundaries are configured. |
| PTZ / motorised lens movement | Not currently supported Not recommended after setup—movement may affect detection accuracy. |
| Existing NVR setups | Possible in some cases May be possible where the camera or NVR can provide, split or forward a stable RTSP stream to the hub. |
| Supplied camera | Tested Hikvision PoE camera included with each system. |
| Camera location | Outdoor pool-area installation (weather-rated supplied camera). |
| Hub location | Indoor only—similar to a small PC enclosure. |
| Mobile alerts | Network-dependent. Requires suitable internet connectivity. |
| Local alarm / strobe | Supported Included and supported depending on installed configuration. |
Supported for compatible fixed-position camera setups.
Not currently supported. Pool Angel relies on a stable fixed view once boundaries are configured.
Not recommended after setup—movement may affect detection accuracy.
May be possible where the camera or NVR can provide, split or forward a stable RTSP stream to the hub.
Tested Hikvision PoE camera included with each system.
Outdoor pool-area installation (weather-rated supplied camera).
Indoor only—similar to a small PC enclosure.
Network-dependent. Requires suitable internet connectivity.
Included and supported depending on installed configuration.
Existing camera and NVR setups vary. Pool Angel may work alongside some systems where a stable RTSP stream can be provided to the hub, but compatibility depends on the camera, network and installation layout.
Pool Angel is an additional AI-powered safety layer—not a replacement for adult supervision, lifeguards, fencing, or legally required safety systems.
Intelligence Meets Vigilance
The Pool Angel Hub is the brain of the system — a purpose-built AI engine trained to detect distress, submersion, and unusual movement with millisecond precision. While the camera captures the scene in real time, the Hub interprets every frame, analysing over 10,000 signals per second to identify potential threats.
Working in perfect unison, the Hub and camera form an intelligent safety layer — one that doesn't just watch, but understands what's happening in the water.
This is more than a camera. It's peace of mind, powered by AI.

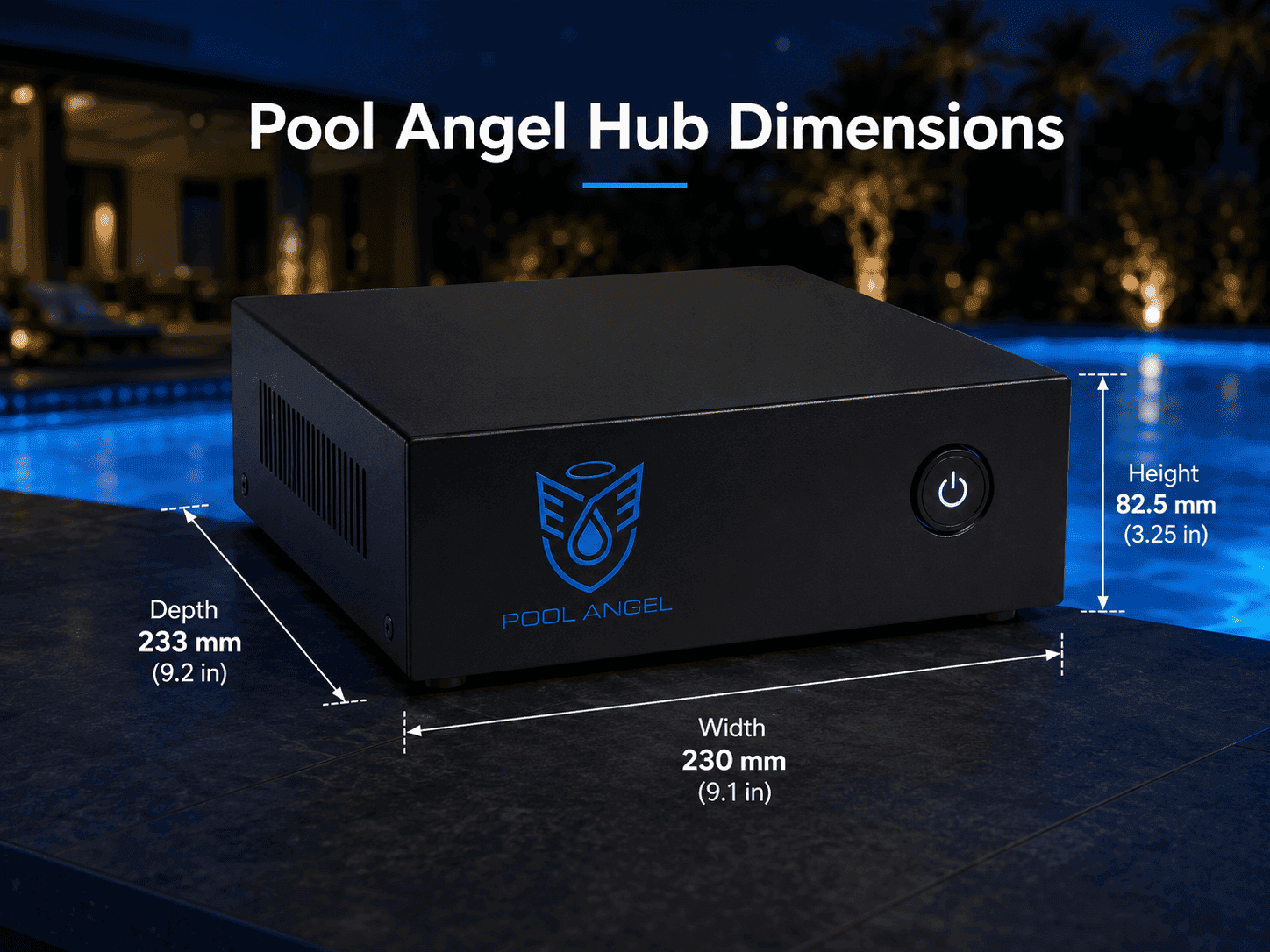

Pool Angel Hub Dimensions
Plan indoor placement before install. The hub processes the camera feed and should sit near suitable power and network access.
Physical specifications
- Depth
- 233 mm
- Width
- 230 mm
- Height
- 82.5 mm
- Approx. (imperial)
- 9.2 in Ă— 9.1 in Ă— 3.25 in
- Use
- Indoor only
- Placement
- Near router / network access where practical
- Enclosure
- Small PC-style hub enclosure
The Pool Angel hub is designed for indoor installation and processes the camera feed from a stable pool-area view. Its compact PC-style enclosure is intended to sit near suitable power and network access.
Example installation paths
Every property is different. These simplified diagrams show how Pool Angel typically fits into real network and camera layouts.

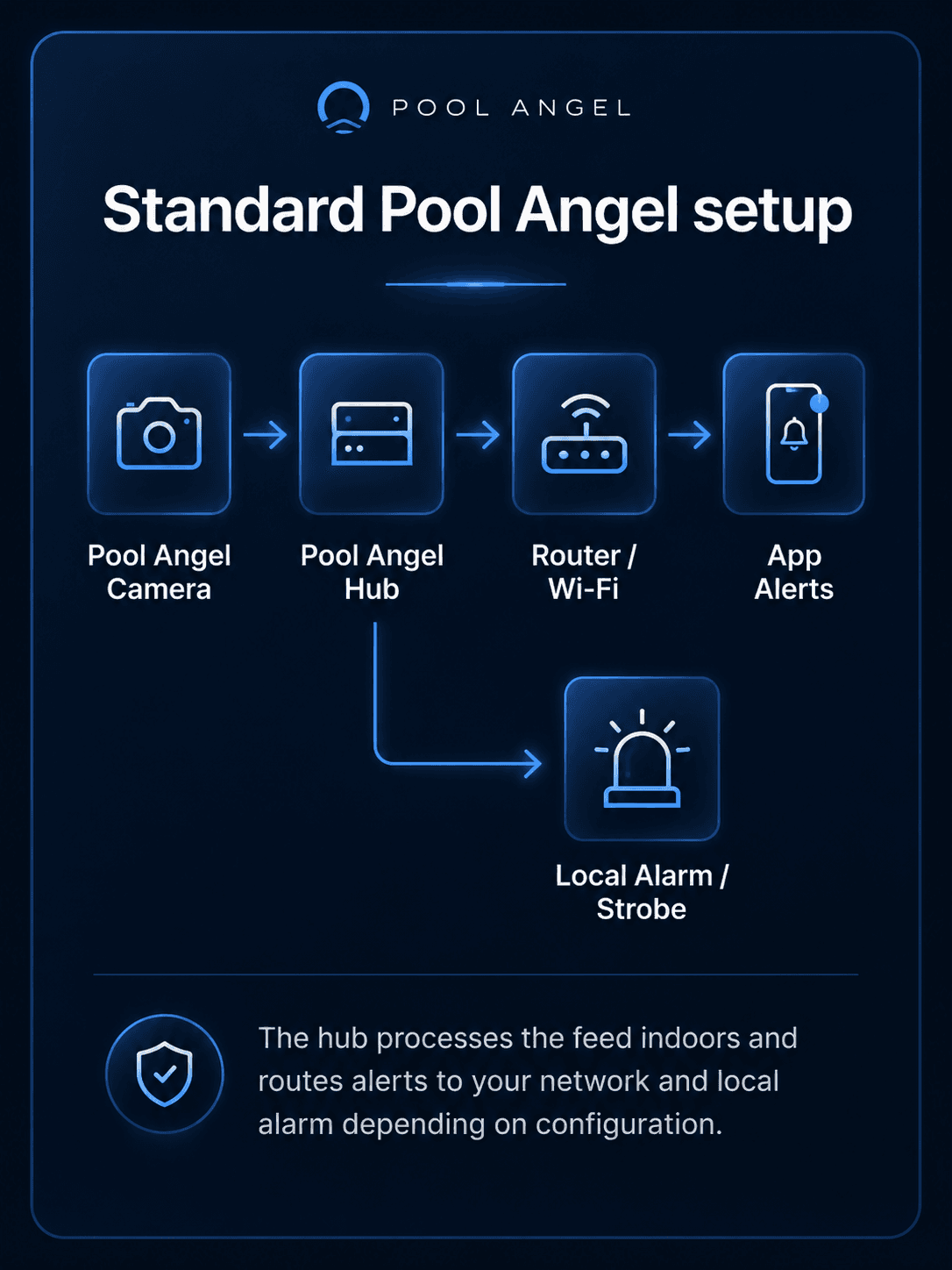

Standard Pool Angel setup
The hub processes the feed indoors and routes alerts to your network and local alarm depending on configuration.

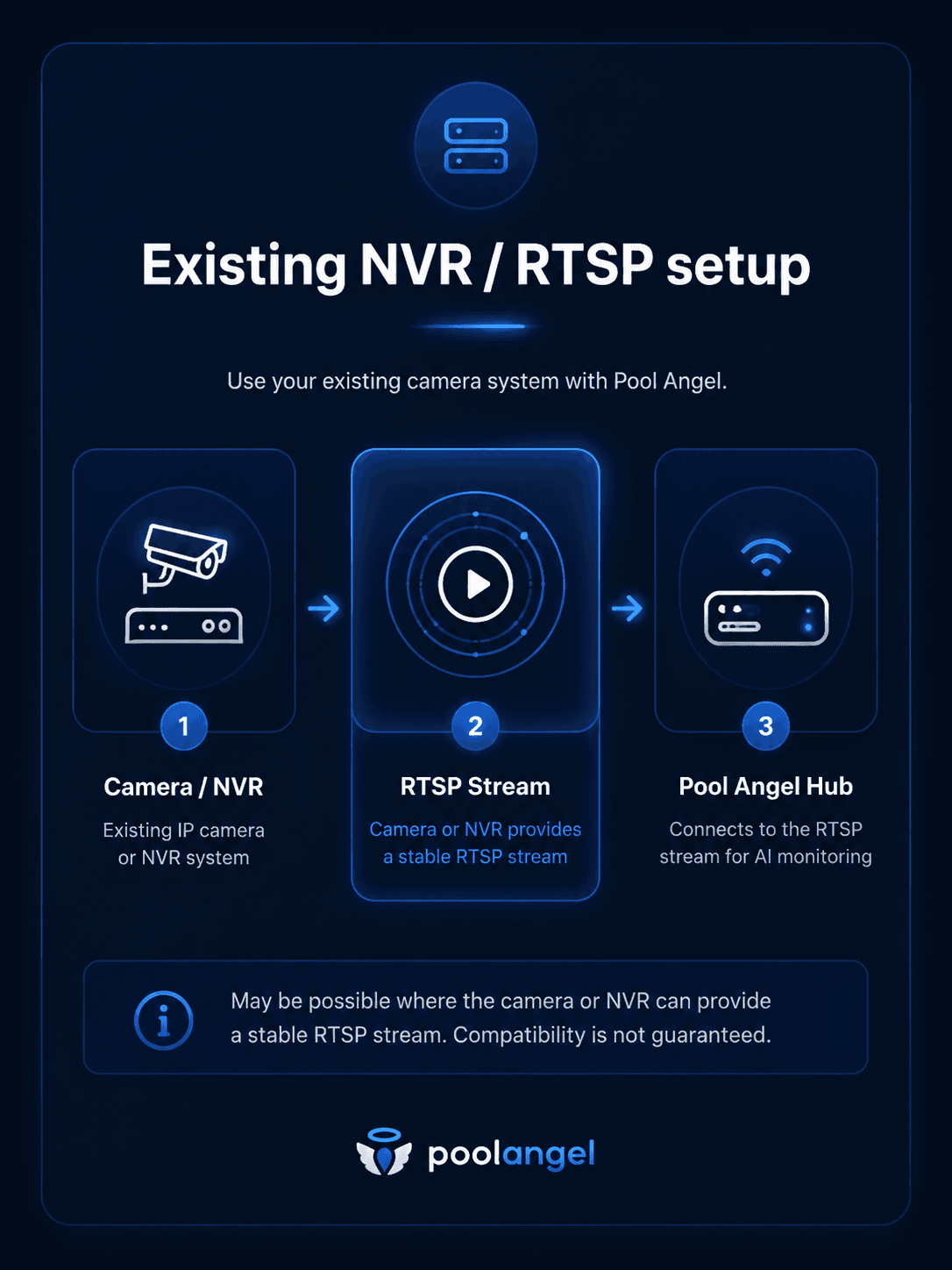

Existing NVR / RTSP setup
May be possible where the camera or NVR can provide a stable RTSP stream. Compatibility is not guaranteed.

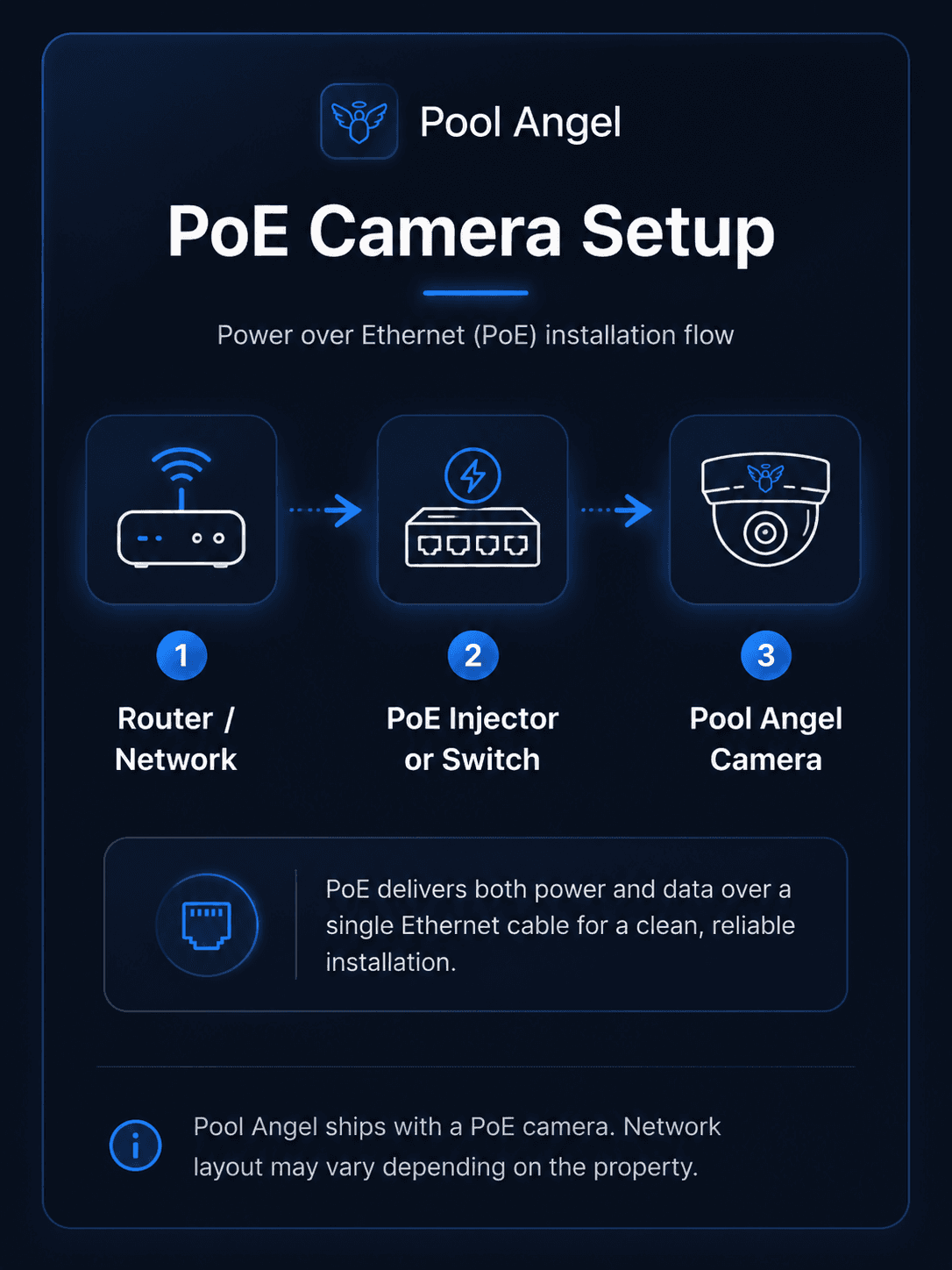

PoE camera setup
Pool Angel ships with a PoE camera. Network layout may vary depending on the property.
Always-On Monitoring Technology
Pool Angel's advanced monitoring system operates continuously, providing round-the-clock protection with minimal power consumption and maximum reliability.
Continuous Operation
Advanced power management allows for 24/7 monitoring with minimal energy consumption.
Redundant Systems
Multiple backup systems ensure continuous operation even in case of partial system failure.
Low-Latency Processing
Edge computing architecture enables real-time analysis with minimal delay between detection and alert.
Adaptive Processing
Intelligent resource allocation adjusts processing power based on environmental conditions and activity levels.
Built Around Trust
Pool Angel doesn't just meet privacy standards. It exceeds them.
Local Event Recording Only
No cloud storage unless specifically chosen by the facility.
Privacy Masks
Exclude sensitive zones from monitoring to protect privacy.
No Facial ID by Default
Focuses on body movements and behaviors, not identifying individuals.
Role Permissions
Optional guest/family account access with customizable role permissions.
Specs That Lead the Industry
14K Ultra HD Camera
High-resolution imaging with IR detection for up to 30m of visibility, even in low-light conditions.
2Weatherproof Housing
IP67 and IK10 rated for complete protection against water, dust, and tampering attempts.
3Smart Compression
H.265+/H.264 technology ensures low latency streaming while minimizing bandwidth requirements.
4AI Event Logging
Comprehensive incident tracking with searchable database for review and analysis.
5Advanced Analysis
Pose analysis, geofencing, and customizable regions of interest for targeted monitoring.
6Local Storage
MicroSD and NAS storage support for up to 128GB of on-premise data retention.
Seamless Setup. Powerful Dashboard.
Pool Angel integrates easily with your network and facility. View live feeds, review flagged events, and update settings from your secure dashboard.
Web & Mobile Interface
Access your dashboard from any device with Chrome, Safari, or Firefox support.
Role-Based Access
Customize permissions for managers, staff, and guests with different access levels.
Audit-Ready Logs
Generate comprehensive reports for compliance and incident documentation.
Optional Integrations
Connect with third-party safety systems for a comprehensive security solution.
Engineered for Compliance & Confidence
Global Safety Standards
U.S. safety standard for pool alarms
European standard for immersion detection
Trusted By
Municipal pools
Aquatic centres
Luxury hotels
Residential facilities
What Our Customers Say
Pool Angel has transformed our facility's safety protocols. Our staff feels more confident knowing there's an extra layer of protection.
Sarah L.
Aquatic Director
Since implementing Pool Angel, our response times to potential incidents have decreased by 40%. It's been a game-changer for our facility.
James H.
Safety Manager
Pool Angel vs. Traditional Home Security Cameras
Designed to complement, not compete.
While Ring and other home security systems monitor for general movement and perimeter breaches, Pool Angel is trained to detect distress events in water — something traditional cameras can't do. Pool Angel doesn't replace your Ring — it completes it. Together, they offer full-home peace of mind.
What traditional cameras miss
| Feature |  | R Ring | N Nest | A Arlo |
|---|---|---|---|---|
| Detects pool distress or drowning behaviour | ||||
| Real-time pose & submersion detection | ||||
| Recognises children vs. pets or adults | ||||
| AI trained for aquatic threats (slips, sinking) | ||||
| Built-in pool zone monitoring | ||||
| Motion & perimeter alerts | ||||
| Designed for water-based incidents |
Detects pool distress or drowning behaviour
Real-time pose & submersion detection
Recognises children vs. pets or adults
AI trained for aquatic threats (slips, sinking)
Built-in pool zone monitoring
Motion & perimeter alerts
Designed for water-based incidents
Pool Angel is not a replacement for your existing home security system — it's the layer of protection that keeps eyes on your most vulnerable space.
Ready to Protect What Matters Most?
Book a free walkthrough or request a technical briefing from our team.
